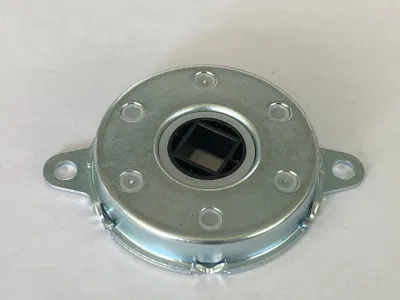

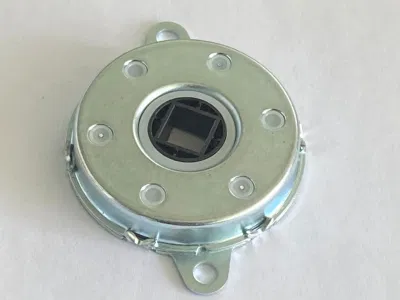

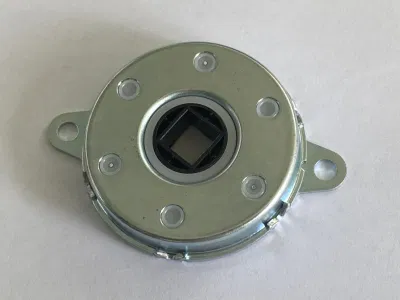

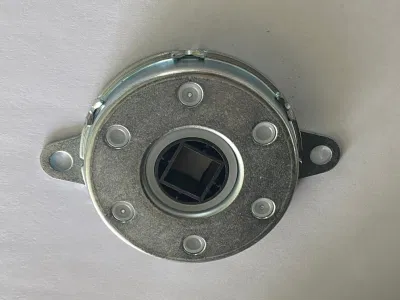

- Detailed Photos
- Our Advantages
- Company Profile
- FAQ
Información Básica.
Descripción de Producto
BASIC INFO
ITEM | TORQUE | DAMPING DIRECTION |
| Q66X-S90G | 9.0±0.9 N·m | Both Direction |
Q66X-S90G | 11.0±1.1 N·m | Both Direction |
Q66X-S110G | 13.0±1.3 N·m | Both Direction |
Note )Rated torque is measured at a ratation speed of 20rpm at 23ºC.
| Max.ratation speed | 50rpm |
| Max cycle rate | 12 cycle/min |
| Operating temperature | ~20~50ºC |
| Weight | 105±3g |
| Maib body material | Iron(SPFC) |
| Rotor shaft material | Nylon(with glass) |
| Oil type | Silicone oil |
1.Advanced production management.
2.Stable and mature production lines.
3.Professional R&D team.
4.We have ISO9001,ISO 140001.
5.From purchasing of raw materials,parts production ,assembly,engineering,testing,factory shipments are in strict accordance with top standard of production technology and quality supervision.
6.High quality for raw material:100% inspect and test for the raw material.Most material imported from Japan.
7.Stable quality of each batch product.
8.Damper lifetime:moe than 50000 cycles.
9.Strict Quality Restriction for dampers-100% inspection and test in production.
10.Quality inspection record is traceable at least 5 years.
11.Superior performance of our dampers.
APPLICATION
Widely applied in all kinds of chairs,mirriors,vehicle ashtray,garbage can,toilet cover,furniture drawer,cabinet,sound,cup holder,handle,card box,overhead sunglaeede clother holder,handle,fuel tank cap,storage compartment,roller blind, small-to-midsize boxes,flexible and slidable products.
Greate smooth movement and damping in application,effectively reduce noise and hiahly upgrade product level.
ABOUT US
Anhui Tian YiDa Technical Trading Co,Ltd. has multiple automatic production lines for dampers,including pipe cutting-automatic assembly-oil filling-sealing -quality inspection-packaging,etc.We produce products of superior quality and short duration.We are fully capable of meeeting the needs of large orders from customers.
1.Samples can be offered to test before placing orders.
2.OEM&ODM.Customization service is offered,including logo,laser marking.
3.Outstanding R&D ability,including product development and mould development.
4.Great pre-sales and after sales service.
Q1.Can I have a sample for testing?
A:Yes.We will customize it according to your needs ASAP,and then send you the test.
Q2.What about the production time ?
A:Sample needs 1-3 days,mass production time needs around 15 days for order quanity more than 10,000 pieces.
Q3.What is your MOQ?
A:Under normal circumstances,the order quanity is 1000 pieces.If you need less than 1,000 pieces,please contact customer service.
Q4.How do you ship the goods and how long does it take to arrive?
A:We usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.Shipping time depend on the shipping way you choose.
Q5.Can I print my logo on the product ?
A:Yes.Plesase inform us formally before our production and confirm the design firstly based on our sample.Customized design is available.OEM and ODM are offered.
